STM32

Hardware connection

The demo codes we provide are based on STM32F103ZET6, the connection table is also based on STM32F103ZET6, if you want to use other chip, you need to port the codes yourself and change the connection according to actual situation.

Connect to STM32F103ZET
e-Paper	STM32
Vcc	3.3V
GND	GND
DIN	PA7
CLK	PA5
CS	PA4
DC	PA2
RST	PA1
BUSY	PA3

Softawre settings

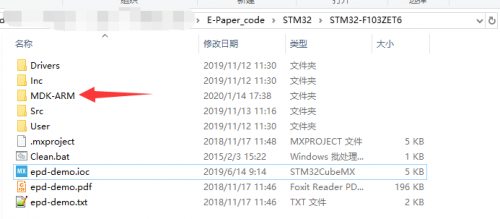

The codes are based on HAL library. Download the codes and the project files are saved under the STM32\STM32-F103ZET6\MDK-ARM directory.

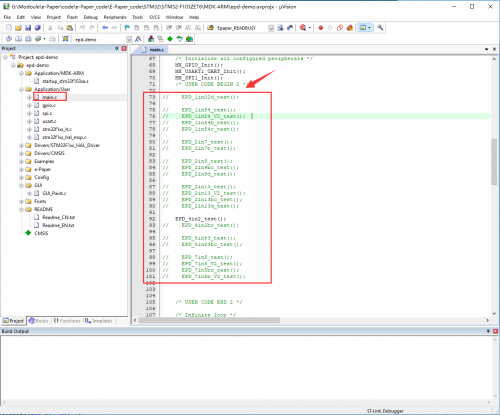

Modify main.c， define the line according to the e-paper type and re-compile project and download.

Codes description

Bottom hardware interface

We package the bottom for different hardware platforms.
You can check the DEV_Config.c(.h) file which is located in \STM32\STM32-F103ZET6\User\Config

Data type:

#define UBYTE   uint8_t
#define UWORD   uint16_t
#define UDOUBLE uint32_t

Module initialized and exit:

void DEV_Module_Init(void);
void DEV_Module_Exit(void);

Note: 1.The functions are used to set GPIP before and after driving e-Paper.</ br> 2..If the board you have is printed with Rev2.1, module enter low-ultra mode after DEV_Module_Exit(). (as we test, the current is about 0 in this mode);</ br>

GPIO Read/Write：

void DEV_Digital_Write(UWORD Pin, UBYTE Value);
UBYTE DEV_Digital_Read(UWORD Pin);

SPI Write data

void DEV_SPI_WriteByte(UBYTE Value);

Middle EPD driver

The epd driver are saved in: STM32\STM32-F103ZET6\User\e-Paper
Open .h file, functions are declarated here

Initialization: It should be used to initialize e-Paper or wakeup e-Paper from sleep mode.

//2.13inch e-Paper、2.9inch e-Paper
void EPD_xxx_Init(UBYTE Mode); //ode = 0 Initialize full refresh; Mode = 1 Initilize partial refresh
//Other type
void EPD_xxx_Init(void);

xxx is the type of e-paper

Clear display: This function is used to clear the e-paper to white

void EPD_xxx_Clear(void);

xxx is the type of e-Paper.

Transmit a frame of image and display

//Black/White e-Paper
void EPD_xxx_Display(UBYTE *Image);

Because controllers of2.13inch e-Paper V2 were updated, you need to use EPD_xxx_DisplayPartBaseImage to display static image and ten use EPD_xxx_displayPart() to dymatic display when partial refreshing.
void EPD_2IN13_V2_DisplayPart(UBYTE *Image);
void EPD_2IN13_V2_DisplayPartBaseImage(UBYTE *Image);

Enter sleep mode

void EPD_xxx_Sleep(void);

Note, You should hardware reset or use initialize function to wake up e-Paper from sleep mode
xxx is the type of e-Paper

Application function

Basic drawing functions are provided here. You can find they in:\STM32\STM32-F103ZET6\User\GUI\GUI_Paint.c(.h)

The fonts are saved in the directory:\STM32\STM32-F103ZET6\User\Fonts

Create a new image buffer: This function is used to create a new image with width, height, Rotate degree and its color.

void Paint_NewImage(UBYTE *image, UWORD Width, UWORD Height, UWORD Rotate, UWORD Color)
Parameter:
 	image: The buffer of the image, this is a pointer of buffer address;
 	Width: width of the image;
 	Height: Height of the image;
 	Rotate: Rotate degree;
 	Color: Initial color of the image;

Select image buffer: this function is used to select the image buffer. You can create multiple image buffer with last function, then select the buffer for every image.

void Paint_SelectImage(UBYTE *image)
Parameter:
 	image: The name of image buffer, it is a pointer of buffer address;

Set display orientation: This function is used to set the rotate degree, it is generally be used after Paint_SelectImage(). You can set the rotate degree to 0、90、180、270 degree.

void Paint_SetRotate(UWORD Rotate)
Parameter:
 	Rotate: Rotate degree, you can choose ROTATE_0、ROTATE_90、ROTATE_180、ROTATE_270 which stands for 0、90、180、270 degree repetitively.

Image mirroring: This function is used to mirror image.

void Paint_SetMirroring(UBYTE mirror)
Parameter:
 	mirror: You can set it to MIRROR_NONE、MIRROR_HORIZONTAL、MIRROR_VERTICAL、MIRROR_ORIGIN

Set pixel: this function is used to set the position and color of pixels in the buffer. This is the basic function of GUI.

void Paint_SetPixel(UWORD Xpoint, UWORD Ypoint, UWORD Color)
Parameter:
 	Xpoint: X-axes in the buffer;
 	Ypoint: Y-axes in buffer;
 	Color: color

Clear: This function is used to clear the screen to certain color.

void Paint_Clear(UWORD Color)
Parameter:
 	Color:

Clear windows: this function is used to clear a window. It is generally used for time display.

void Paint_ClearWindows(UWORD Xstart, UWORD Ystart, UWORD Xend, UWORD Yend, UWORD Color)
Parameter:
 	Xstart: Start coordinate of X-axes of the window;
 	Ystart: Start coordinate of Y-axes of the window;
 	Xend: End coordinate of X-axes of the window;
 	Yend: End coordinate of Y-axes of the window;
 	Color:

Draw point: Draw a point on the position （Xpoint, Ypoint）in buffer

void Paint_DrawPoint(UWORD Xpoint, UWORD Ypoint, UWORD Color, DOT_PIXEL Dot_Pixel, DOT_STYLE Dot_Style)
Parameter:
 	Xpoint: X coordinate of point;
 	Ypoint: Y coordinate of point;
 	Color: color of point;
 	Dot_Pixel: the size of point, there are 8 sizes available;
 	 	 typedef enum {
 	 	 	 DOT_PIXEL_1X1  = 1,	// 1 x 1
 	 	 	 DOT_PIXEL_2X2  , 		// 2 X 2
 	 	 	 DOT_PIXEL_3X3  , 	 	// 3 X 3
 	 	 	 DOT_PIXEL_4X4  , 	 	// 4 X 4
 	 	 	 DOT_PIXEL_5X5  , 		// 5 X 5
 	 	 	 DOT_PIXEL_6X6  , 		// 6 X 6
 	 	 	 DOT_PIXEL_7X7  , 		// 7 X 7
 	 	 	 DOT_PIXEL_8X8  , 		// 8 X 8
 	 	} DOT_PIXEL;
 	Dot_Style: style of point.
 	 	typedef enum {
 	 	   DOT_FILL_AROUND  = 1,
 	 	   DOT_FILL_RIGHTUP,
 	 	} DOT_STYLE;

Draw line: draw a line for (Xstart, Ystart) to (Xend, Yend)

void Paint_DrawLine(UWORD Xstart, UWORD Ystart, UWORD Xend, UWORD Yend, UWORD Color, LINE_STYLE Line_Style , LINE_STYLE Line_Style)
Parameter:
 	Xstart: Start coordinate of X-axes of line;
 	Ystart: Start coordinate of Y-axes of line;
 	Xend: End coordinate of X-axes of line;
 	Yend: End coordinate of Y-axes of line
 	Color:
 	Line_width: the width of line, 8 sizes are avalilable;
 	 	typedef enum {
 	 	 	 DOT_PIXEL_1X1  = 1,	// 1 x 1
 	 	 	 DOT_PIXEL_2X2  , 		// 2 X 2
 	 	 	 DOT_PIXEL_3X3  ,		// 3 X 3
 	 	 	 DOT_PIXEL_4X4  ,		// 4 X 4
 	 	 	 DOT_PIXEL_5X5  , 		// 5 X 5
 	 	 	 DOT_PIXEL_6X6  , 		// 6 X 6
 	 	 	 DOT_PIXEL_7X7  , 		// 7 X 7
 	 	 	 DOT_PIXEL_8X8  , 		// 8 X 8
 	 	} DOT_PIXEL;
 	 Line_Style: Style of the line;
 	 	typedef enum {
 	 	 	 LINE_STYLE_SOLID = 0,
 	 	 	 LINE_STYLE_DOTTED,
 	 	} LINE_STYLE;

Draw rectangle: Draw a rectangle from (Xstart, Ystart) to (Xend, Yend).

void Paint_DrawRectangle(UWORD Xstart, UWORD Ystart, UWORD Xend, UWORD Yend, UWORD Color, DOT_PIXEL Line_width, DRAW_FILL Draw_Fill)
Parameter:
 	Xstart: Start coordinate of X-axes of rectangle
 	Ystart: Start coordinate of Y-axes of rectangle
 	Xend: End coordinate of X-end of rectangle
 	Yend: End coordinate of Y-end of rectangle
 	Color: color of rectangle
 	Line_width: The width of edges, 8 sides are available;
 	 	typedef enum {
 	 	 	 DOT_PIXEL_1X1  = 1,	// 1 x 1
 	 	 	 DOT_PIXEL_2X2  , 		// 2 X 2
 	 	 	 DOT_PIXEL_3X3  ,		// 3 X 3
 	 	 	 DOT_PIXEL_4X4  ,		// 4 X 4
 	 	 	 DOT_PIXEL_5X5  , 		// 5 X 5
 	 	 	 DOT_PIXEL_6X6  , 		// 6 X 6
 	 	 	 DOT_PIXEL_7X7  , 		// 7 X 7
 	 	 	 DOT_PIXEL_8X8  , 		// 8 X 8
 	 	} DOT_PIXEL;
 	Draw_Fill: set the rectangle full or empty.
 	 	typedef enum {
 	 	 	 DRAW_FILL_EMPTY = 0,
 	 	 	 DRAW_FILL_FULL,
 	 	} DRAW_FILL;

Draw circle:Draw a circle, use (X_Center Y_Center) as center;

void Paint_DrawCircle(UWORD X_Center, UWORD Y_Center, UWORD Radius, UWORD Color, DOT_PIXEL Line_width, DRAW_FILL Draw_Fill)
Parameter:
 	X_Center: X coordinate of center
 	Y_Center: Y coordinate of center
 	Radius：Radius of circle
 	Color: color of circle
 	Line_width: width of circle, 8 sizes are avalilable
 	 	typedef enum {
 	 	 	 DOT_PIXEL_1X1  = 1,	// 1 x 1
 	 	 	 DOT_PIXEL_2X2  , 		// 2 X 2
 	 	 	 DOT_PIXEL_3X3  ,		// 3 X 3
 	 	 	 DOT_PIXEL_4X4  ,		// 4 X 4
 	 	 	 DOT_PIXEL_5X5  , 		// 5 X 5
 	 	 	 DOT_PIXEL_6X6  , 		// 6 X 6
 	 	 	 DOT_PIXEL_7X7  , 		// 7 X 7
 	 	 	 DOT_PIXEL_8X8  , 		// 8 X 8
 	 	} DOT_PIXEL;
 	Draw_Fill: style of circle
 	 	typedef enum {
 	 	 	 DRAW_FILL_EMPTY = 0,
 	 	 	 DRAW_FILL_FULL,
 	 	} DRAW_FILL;

Draw character (ASCII): Set(Xstart Ystart) as letf-top point, draw a ASCII character.

void Paint_DrawChar(UWORD Xstart, UWORD Ystart, const char Ascii_Char, sFONT* Font, UWORD Color_Foreground, UWORD Color_Background)
Parameter:
 	Xstart: X coordinate of left-top pixel of character;
 	Ystart: Y coordinate of left-top pixel of character;
 	Ascii_Char：Ascii character;
 	Font: 5 fonts are available;
 	 	font8：5*8
 	 	font12：7*12
 	 	font16：11*16
 	 	font20：14*20
 	 	font24：17*24
 	Color_Foreground: color of character;
 	Color_Background: color of background;

Draw String: Set point (Xstart Ystart) as the left-top pixel, draw a string.

void Paint_DrawString_EN(UWORD Xstart, UWORD Ystart, const char * pString, sFONT* Font, UWORD Color_Foreground, UWORD Color_Background)
Parameter:
 	Xstart: X coordinate of left-top pixel of characters;
 	Ystart: Y coordinate of left-top pixel of characters;
 	pString：Pointer of string
 	Font: 5 fonts are available:
 	 	font8：5*8
 	 	font12：7*12
 	 	font16：11*16
 	 	font20：14*20
 	 	font24：17*24
 	Color_Foreground: color of string
 	Color_Background: color of background

Draw Chinese charactgers: this function is used to draw Chinese fonts based ON GB2312 fonts.

void Paint_DrawString_CN(UWORD Xstart, UWORD Ystart, const char * pString, cFONT* font, UWORD Color_Foreground, UWORD Color_Background)
Parameter:
 	Xstart: Coordinate of left-top pixel of characters;
 	Ystart: Coordinate of left-top pixel of characters;
 	pString：Pointer of string
 	Font: GB2312 fonts
 	 	font12CN：11*21(ascii)，16*21 (Chinese)
 	 	font24CN：24*41(ascii)，32*41 (Chinese)
 	Color_Foreground: color of string
 	Color_Background: color of background

Draw number: Draw a string of numbers, (Xstart, Ystart) is the left-top pixel.

void Paint_DrawNum(UWORD Xpoint, UWORD Ypoint, int32_t Nummber, sFONT* Font, UWORD Color_Foreground, UWORD Color_Background)
Parameter:
 	Xstart: X coordinate of left-top pixel;
 	Ystart: Y coordicate of left-to pixel;
 	Nummber：the numbers displayed. the numbers are saved in int format, the maximum is 2147483647;
 	Font: 5 fonts are available：
 	 	font8：5*8
 	 	font12：7*12
 	 	font16：11*16
 	 	font20：14*20
 	 	font24：17*24
 	Color_Foreground: color of font;
 	Color_Background: color of background;

Display time:Display time, (Xstart, Ystart) is the left-top pixel. This function is used for e-Paper which supports partial refresh

void Paint_DrawTime(UWORD Xstart, UWORD Ystart, PAINT_TIME *pTime, sFONT* Font, UWORD Color_Background, UWORD Color_Foreground)
Parameter:
 	Xstart: X coordinate of left-top pixel of character;
 	Ystart: Y coordinate of left-top pixel of character;
 	pTime：Pointer of time displayed;
 	Font: 5 fonts are available;
 	 	font8：5*8
 	 	font12：7*12
 	 	font16：11*16
 	 	font20：14*20
 	 	font24：17*24
 	Color_Foreground: color of fonts
 	Color_Background: color of background

Draw image:send image data of bmp file to buffer

void Paint_DrawBitMap(const unsigned char* image_buffer)
Parameter:
 	image_buffer: adrress of image data in buffer
